Industrial Mixed Bed System Ultra-Pure Water Treatment System

Industrial Mixed Bed System Ultra-Pure Water Treatment System

Overview Please click here >>>> Contact us for more factory prices,shipping and discounts. Product Description Ultra-pur
Basic Info
Model NO. Various
Certificate ISO9001
Transport Package Standard
Specification Various
Trademark Runh power
Origin China
Production Capacity 100
Product Description

Please click here >>>> Contact us for more factory prices,shipping and discounts.

Product Description

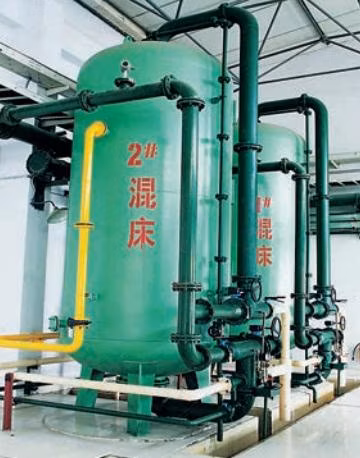

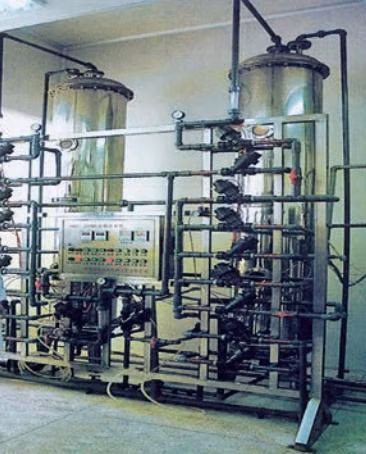

Ultra-pure water system - Mixed Bed System

Mixed is short for ion exchange column, it mixes proportional cation resin and anion resin into exchange column, to exchange and remove the ions in flow. As cation resin's specific gravity is bigger than anion resin's, so inside column cation resin is under anion resin, capacity of cation and anion resin is 1:2 or 1:1.5. Mixed bed system includes inside regeneration and outside regeneration, inside generation mixed bed means generation process happening inside column, cation and anion resin regeneration at same time. So it needs less accessory equipments and operations easily.
Some other advantages are:

(1) Output water quality very good, PH almost neutral.

(2) Output water quality stable, change very little while running conditions change

(3)Only needs few time to get normal output water after a break

Industrial Mixed Bed System Ultra-Pure Water Treatment System

Industrial Mixed Bed System Ultra-Pure Water Treatment System

Industrial Mixed Bed System Ultra-Pure Water Treatment System

Industrial Mixed Bed System Ultra-Pure Water Treatment System


Double stage RO+ bed:output water resistirity reaches 15MΩ.com

Single stage RO+ bed:out put water resistirity reaches 10MΩ.com
